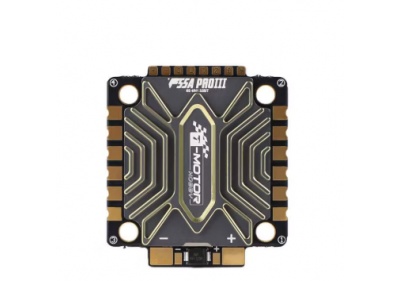

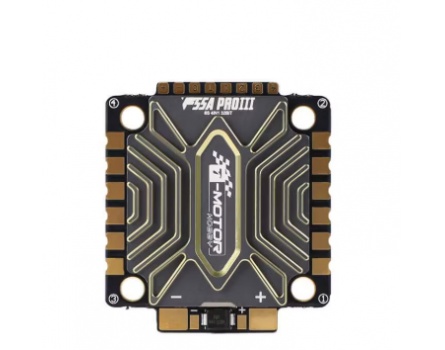

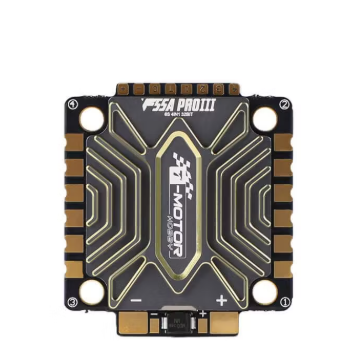

Introducing the upgraded F55a Pro III 4-in-1 ESC, a powerhouse ESC featuring TPHR8504 MOS and STM32G071 MCU. With exceptional stability, this ESC sets itself apart from traditional ESCs and competitors. It comes equipped with TVS protection for added security, while its use of imported materials ensures durability even during high-intensity flights.
EXTRAORDINARILY
PREMIUM MATERIAL TPHR8504/STM32G071
F55A PROIII
16-128KHZ
KHZ
AUTOMATICALLY ADJUST
ACCORDING TO THE MOTOR KV
SUITABLE FOR X8 FPV DRONE
EVENLY CONDUCTS ESC TEMPERATURE AND DISSIPATES HEAT
Voltage: 3S-8S Lipo
BEC: No
Current: 55A
Mounting Hole: 30.5*30.5mm/M3
Peak Current: 65A (10 Seconds)
Size: 44*40*7.5mm
Firmware: BLHELI_32
Amperage Meter: 200
Telemetry: Support
Weight: 17.8g
61MM Double-ended
SH1.0-10P Silicone Cable*1
Plug and Play with F7, F7 HD FC
61mm Single Head
SH1.0-10P Silicone cable*1
Suitable for F7 Pro
Low Yellow Shock
Absorbing Washer*4
Capacitor*1
High Yellow Shock
Absorbing Washer*4
All the products are authentic from T-MOTOR,
please rest assured to purchase
T-MOTOR service center provides the utmost user-friendly
service to customers
