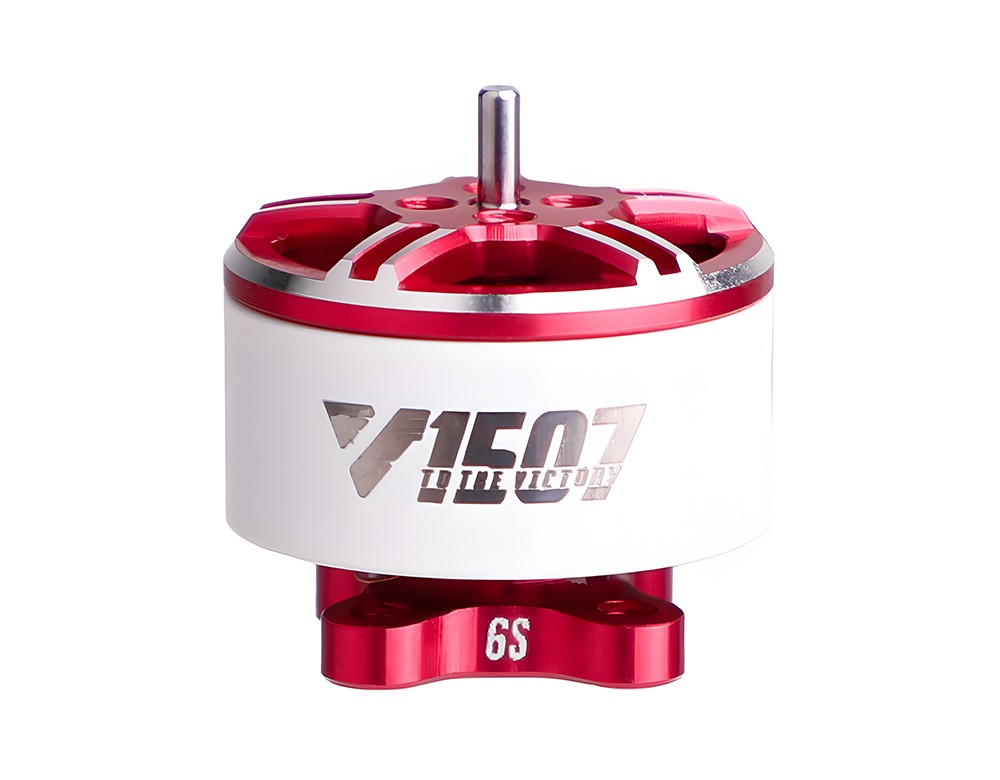

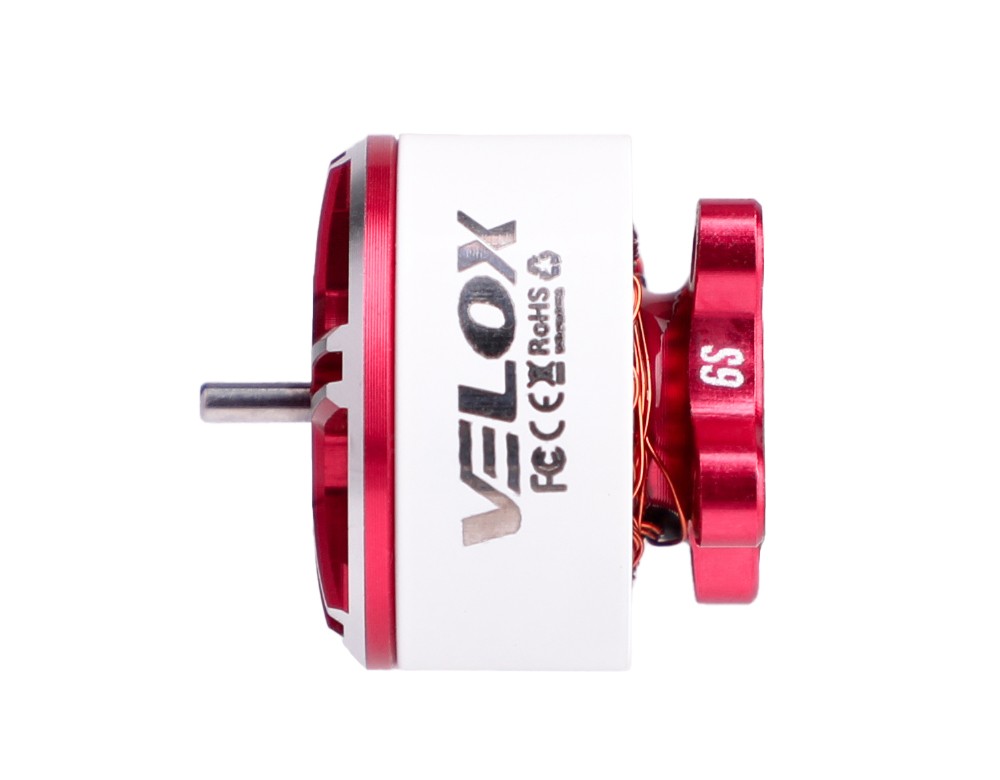

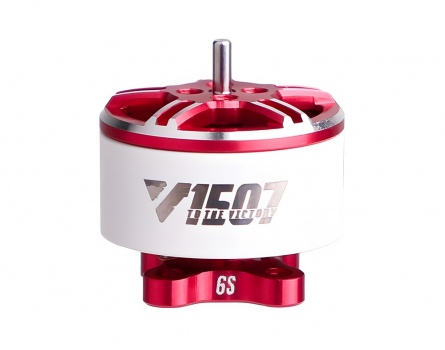

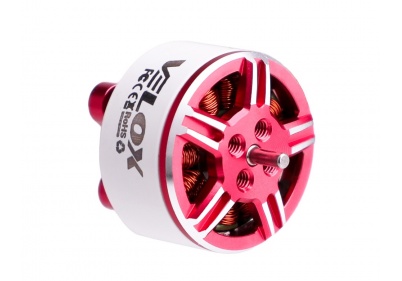

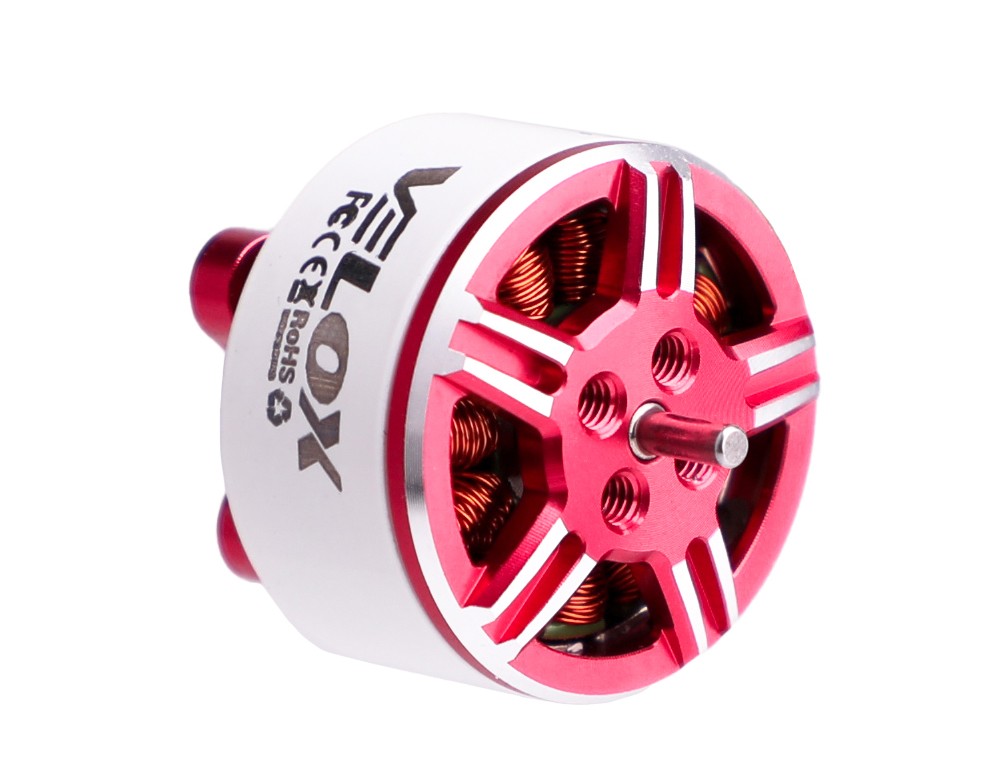

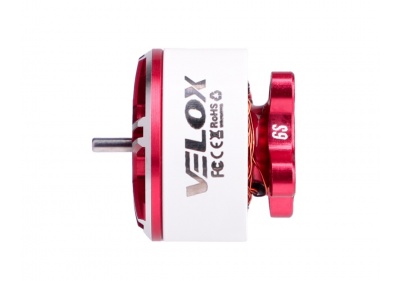

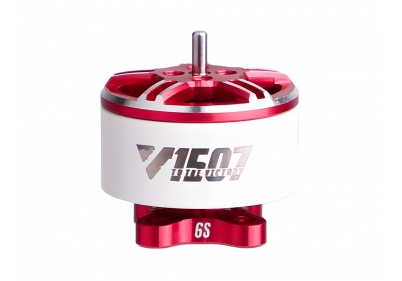

3 INCH HIGH THRUST MOTOR
suppoorts 4S & 6S,shaft 1.5mm and 5mm optional
3 inch FPV drone capable of carrying loads up to 300 grams
NO OVERHEATING

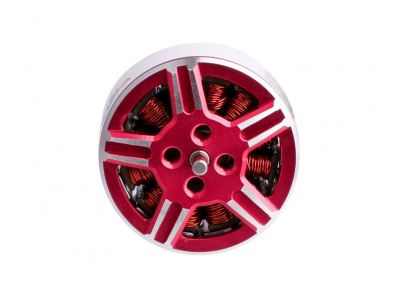

12N14P configuration,simulation optimization for both electromagnetism and heat dissipationReducing temperature by 20℃ during continuous intense flight（compared to F1507 motor under identical conditions）
12N14P configuration,simulation optimization for both electromagnetism and heat dissipation Reducing temperature by 20℃ during continuous intense flight（compared to F1507 motor under identical conditions）
BROAD COMPATIBILITY

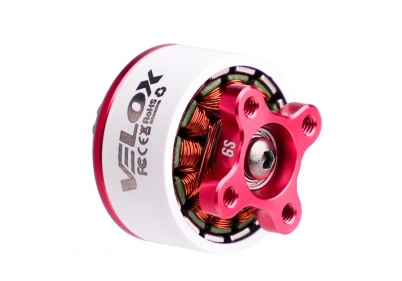

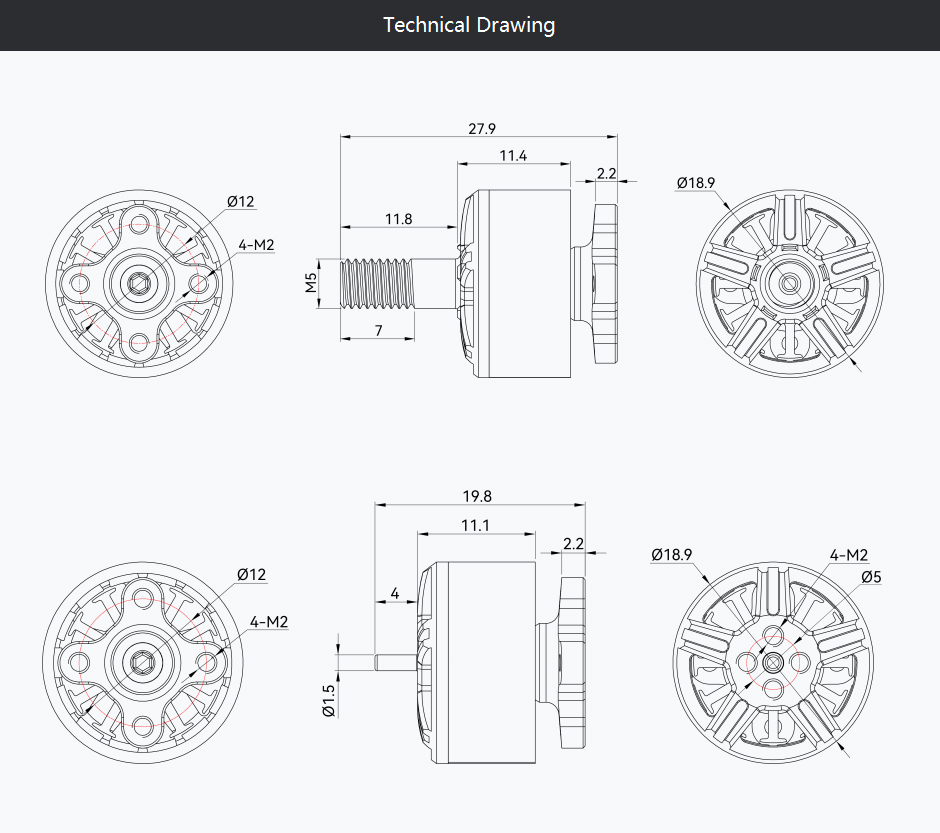

Φ12mm-M2-4base mounting holes
Two propeller mounting options: 1.5mm shaftless and 5mm single
STRUCTURE UPGRADE
M2 locking screw for easier maintenance
Non-protruding locking screw for
better compatibility with the frame

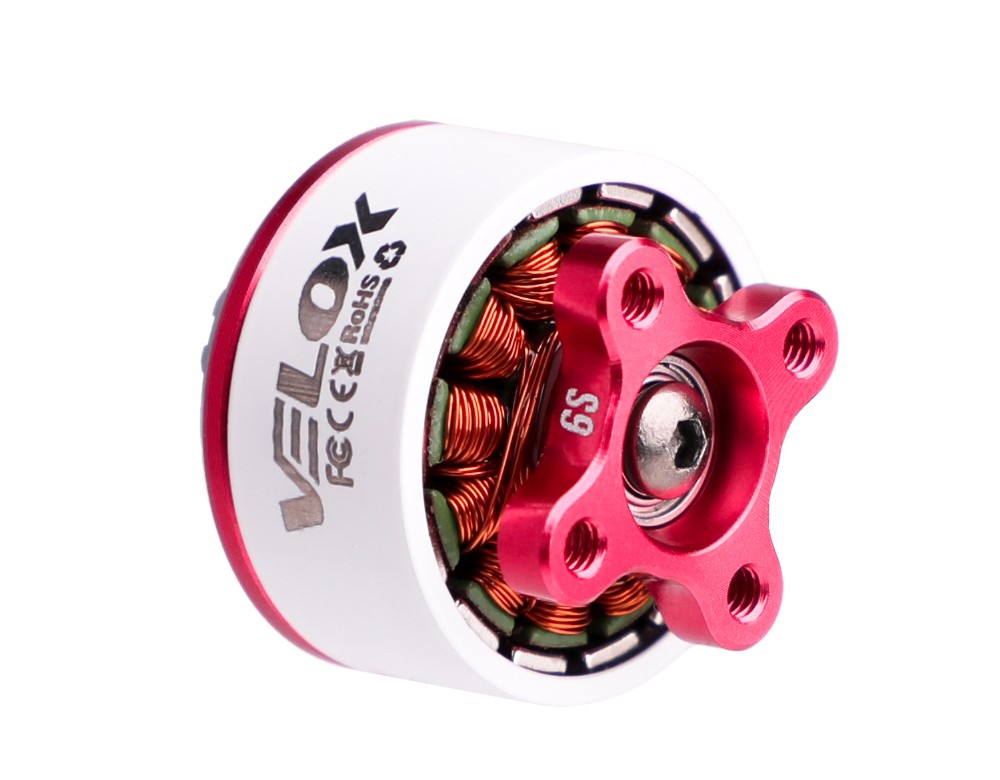

Large bearings and O-ring rubber seals, providing dual
protection
M2 locking screw for easier maintenance Non-protruding locking screw for better compatibility with the frameLarge bearings and O-ring rubber seals, providing dual protection
CHOICE WITH EASE
4S and 6S dual voltage versions,say goodble to KV confusion
Compatible with 3 inch large pitch
propellers(e.g.,T76S)

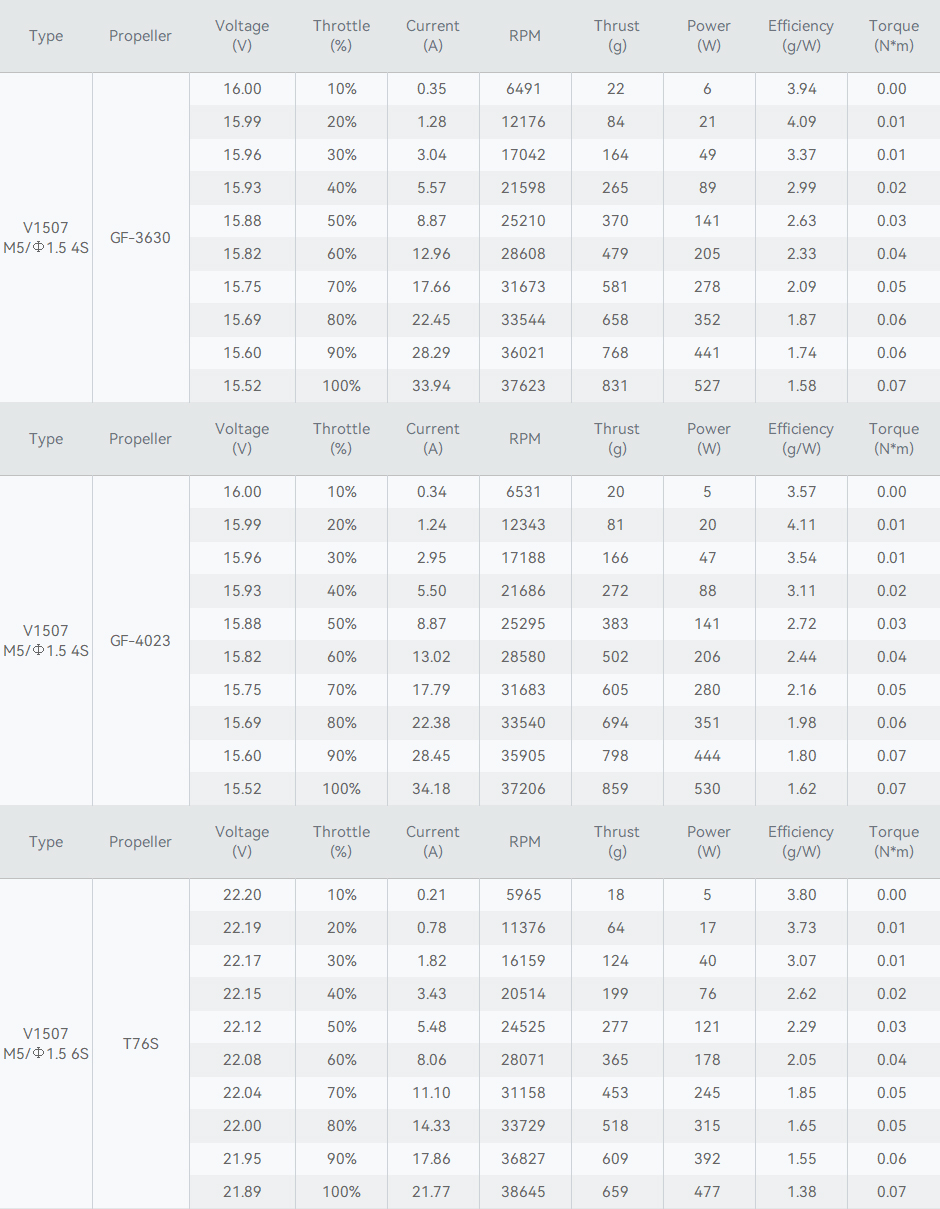

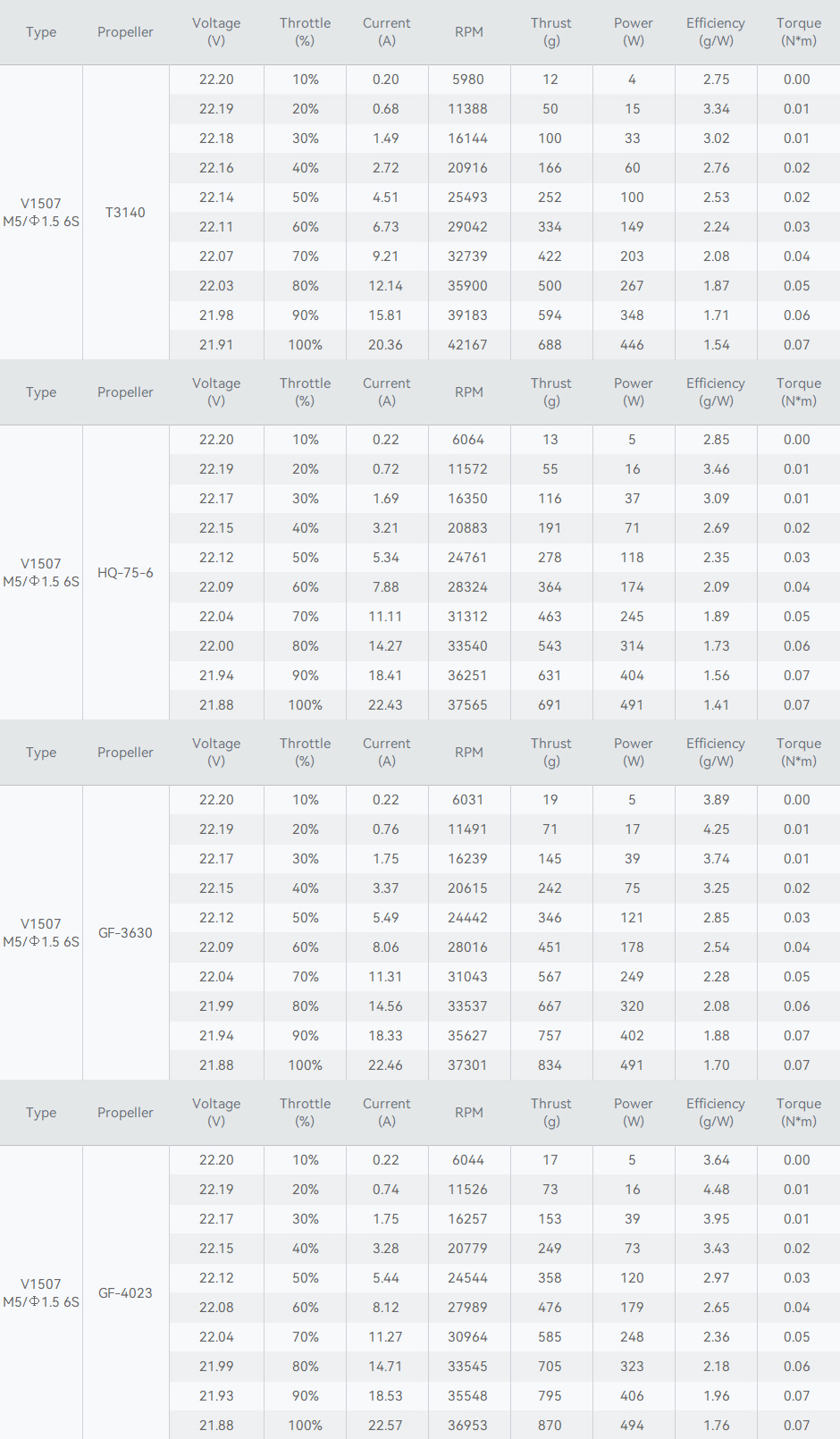

Providing up to 200g thrust per motor
4S and 6S dual voltage versions,say goodble to KV confusion Compatible with 3 inch large pitch propellers(e.g.,T76S) Providing up to 200g thrust per motor

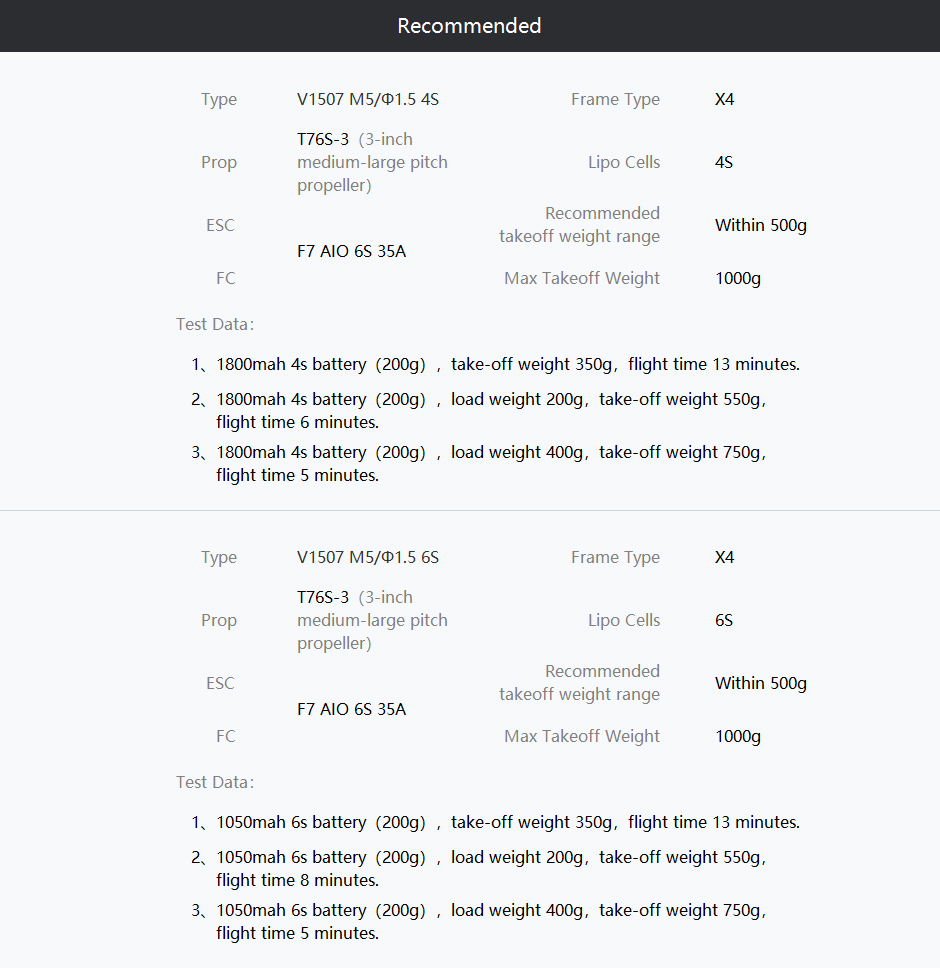

RECOMMENDED POWER SYSTEM
V1507
F7 35A AIO 6S
T76S
