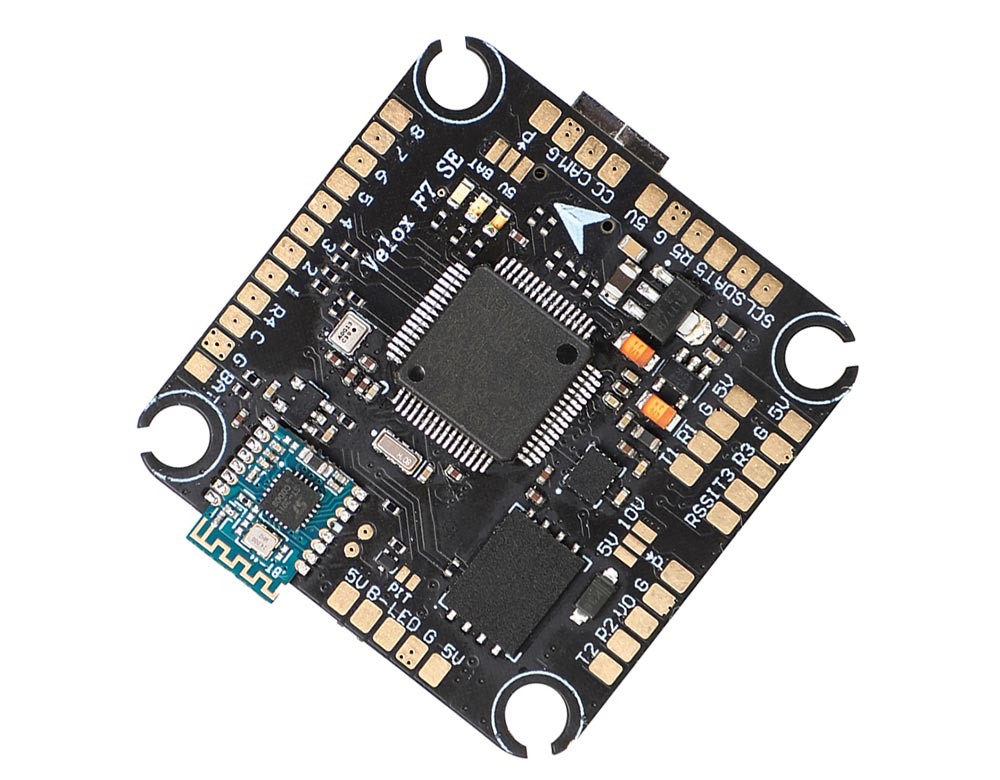

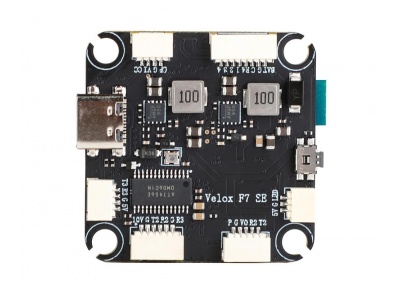

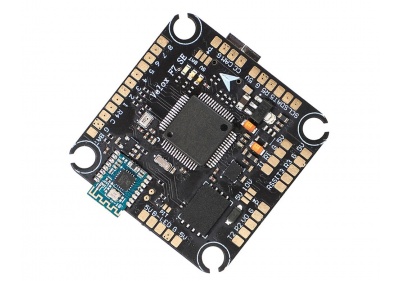

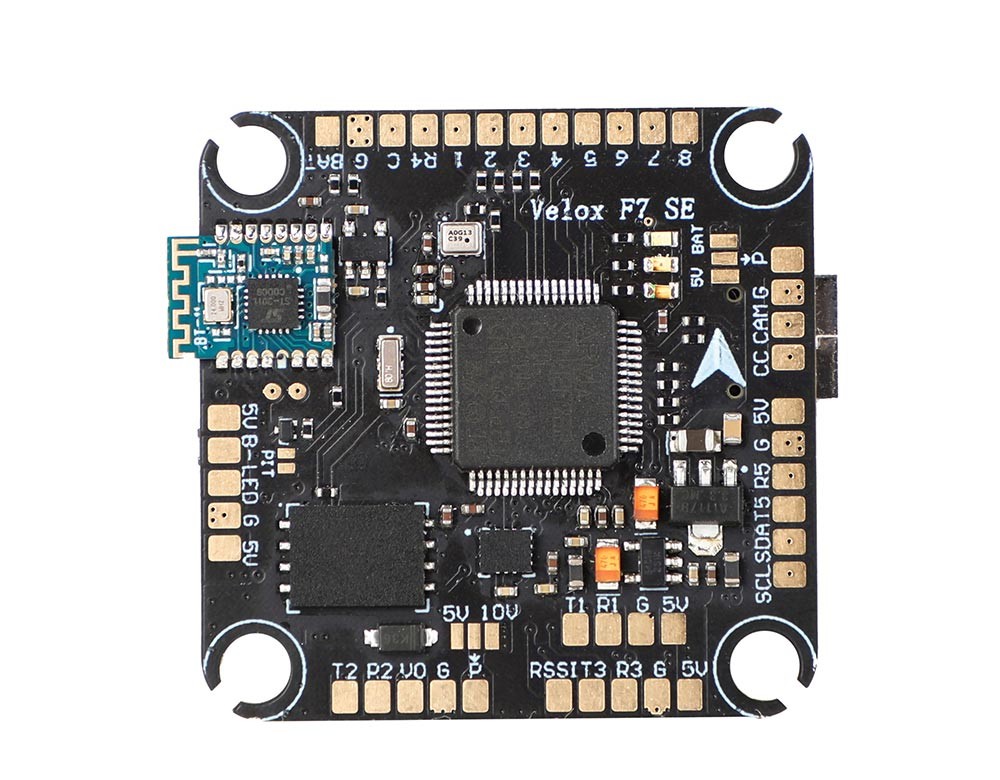

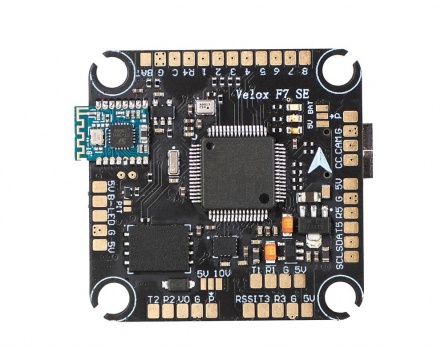

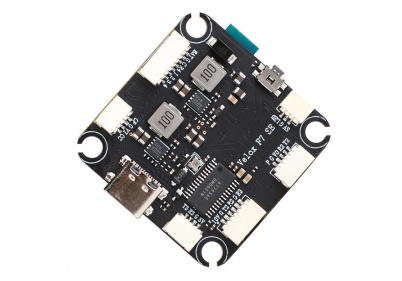

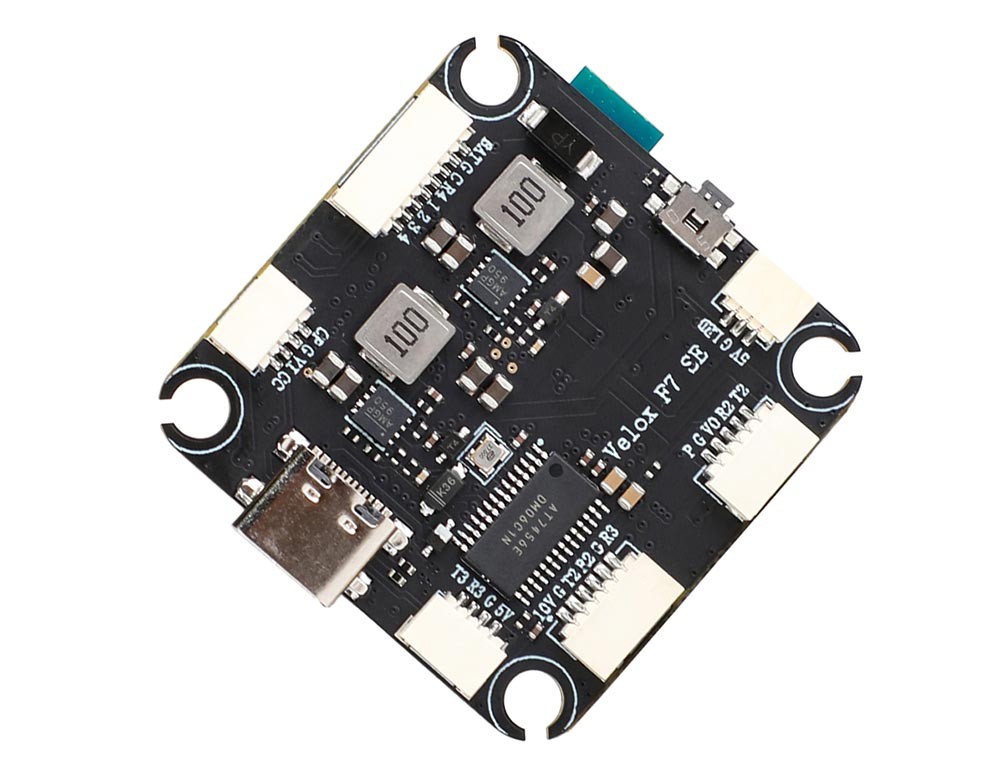

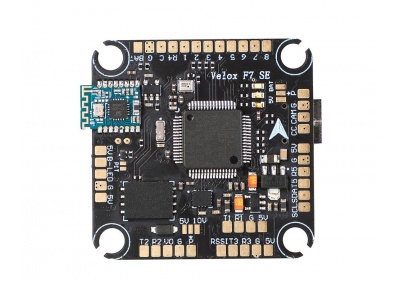

T-MOTORHOBBY Velox F7 SE Flight Control

BETAFLIGHT
LATEST WIRING
STANDARD

Unified socket standards, no longer worry about
misplugging and burning the device

UNLOCKING
THE FULL FUNCTIONS

• Wireless Bluetooth
• Dual BEC
• HD&Analog
• 8 Motors Support
• PIT function
• Voltage Selection
• All Sockets
• 128M Black Box
• Built-in Barometer

BLUETOOTH WIRELESS
PARAMETER ADJUSTMENT

THE SECOND-GENERATION
POWER SOLUTION ENSURES
SMOOTH FLYING

The power supply suppresses noise up to 90db,
making the gyroscope low-noise and low-latency

FREE CHOICE OF
VOLTAGE OUTPUT

If you are worrying about that the VTX and
camera voltage is not compatible, and the wiring
needs to cross the FC to obtain power.Voltage
selectable pads allow you to say goodbye
to the above embarrassment

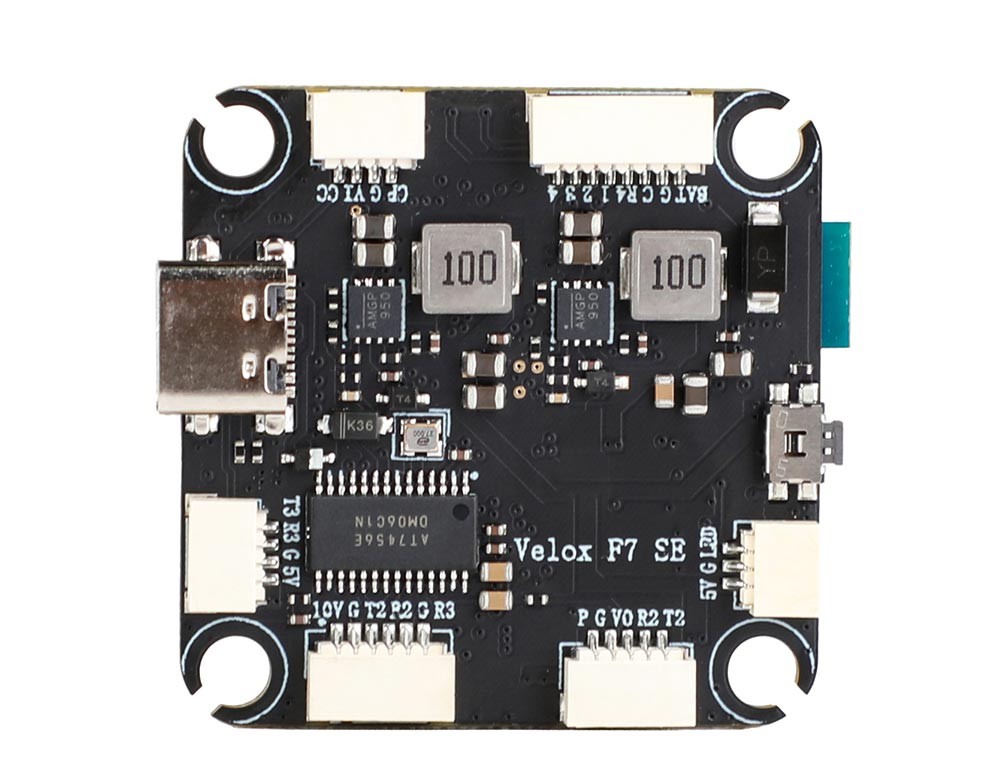

VELOX F7 SE

SPEC
FC

• ModelVELOX F7 SE
• FirmwareSTM32F7X2
• Unified targetTMTR-T-MOTORHOBBYVELOXF7
• MCUSTM32F722
• GyroscopeICM-42688-P(SPI)
• BEC5V2A&10V1.5A
• Uarts6
• BluetoothTMFC
• OSDAT7456E&HD
• Black box128MB
• USBTYPE-C
•
• Specifications
• Weight9g
• Size37.5*40*6.4mm
• Installation hole30.5*30.5/φ4mm
• Input voltage12-27V(3-6S)
• Typical application170-450multi-rotor
