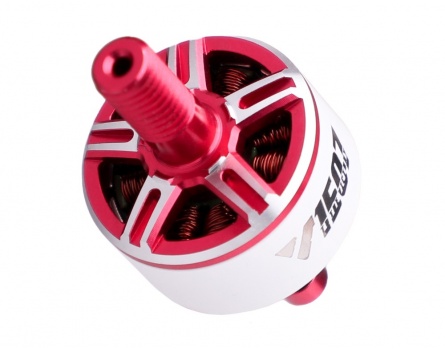

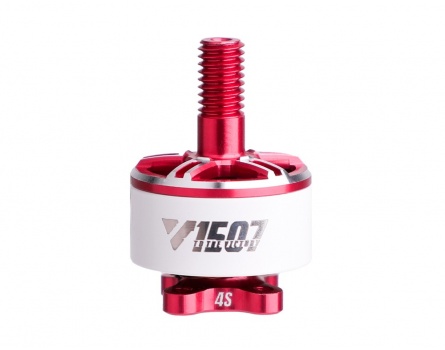

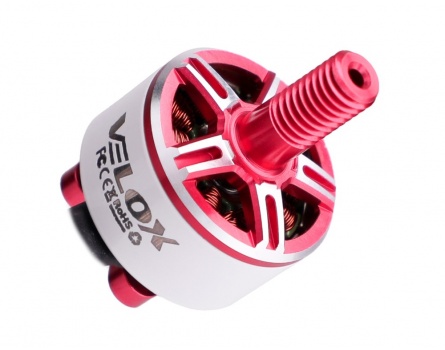

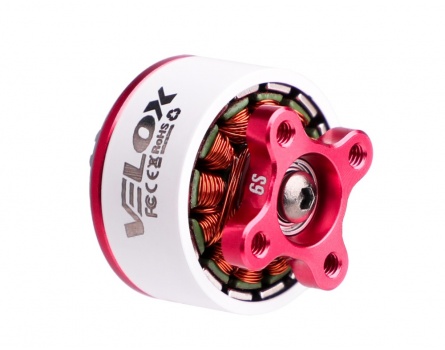

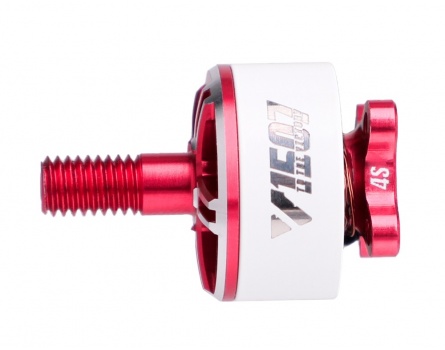

T-MOTORHOBBY VELOX V1507

$19.9 Available Points:0 Points:
  • Ordinary:$19.5| Silver:$19.1| Gold:$18.91| Diamond:$18.31|

Orders Over 80$ Free Shipping, DHL can reach your place in 7 to 10 days

Parameters View Products Main Parameter

Product Detail

T-MOTORHOBBY V1507 motor detail1

3 INCH HIGH THRUST MOTOR

suppoorts 4S & 6S,shaft 1.5mm and 5mm optional
3 inch FPV drone capable of carrying loads up to 300 grams

T-MOTORHOBBY V1507 motor detail2

NO OVERHEATING

12N14P configuration,simulation optimization for both electromagnetism and heat dissipationReducing temperature by 20℃ during continuous intense flight(compared to F1507 motor under identical conditions)

12N14P configuration,simulation optimization for both electromagnetism and heat dissipation Reducing temperature by 20℃ during continuous intense flight(compared to F1507 motor under identical conditions)

T-MOTORHOBBY V1507 motor detail3

BROAD COMPATIBILITY

Φ12mm-M2-4base mounting holes
Two propeller mounting options: 1.5mm shaftless and 5mm single

VELOX

T-MOTORHOBBY V1507 motor detail4

STRUCTURE UPGRADE

M2 locking screw for easier maintenance
Non-protruding locking screw for better compatibility with the frame
Large bearings and O-ring rubber seals, providing dual protection

M2 locking screw for easier maintenance Non-protruding locking screw for better compatibility with the frameLarge bearings and O-ring rubber seals, providing dual protection

T-MOTORHOBBY V1507 motor detail5

CHOICE WITH EASE

4S and 6S dual voltage versions,say goodble to KV confusion
Compatible with 3 inch large pitch propellers(e.g.,T76S)
Providing up to 200g thrust per motor

4S and 6S dual voltage versions,say goodble to KV confusion Compatible with 3 inch large pitch propellers(e.g.,T76S) Providing up to 200g thrust per motor

VELOX

RECOMMENDED POWER SYSTEM

V1507

F7 35A AIO 6S

T76S

Parameters

(Click to view larger image. Zoom in with gestures )

Promotion

Parameters

  • Product Name:

    T-MOTORHOBBY VELOX V1507
